Image Intensifier Tube Gen2+ 1900 FOM




This 18mm Image Intensifiers tube is the latest product and has wide spectral range, high near infrared response.This newly developed photocathode process represent a significant breakthrough in sensitivity. Compared with traditional Image Intensifier,photocathode sensitivity ，near-infrared sensitvity and signal to noise ratio increased by 30% -60%，50% and 30%, respectively. The spectral range is extened more than 1000nm,so that can image 1064nm laser. A halo size is decreased within 0.7mm and 16mm. It can be supplied with ultra-high auto-gating and bright spot protection.

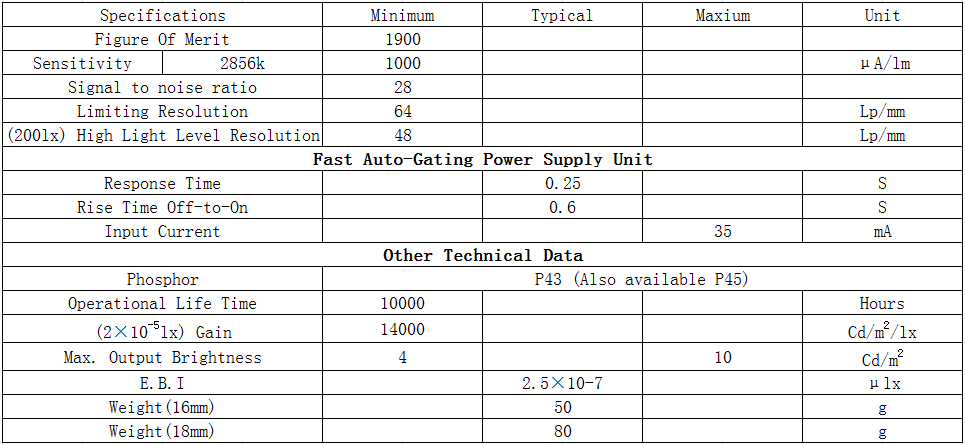

Key features:

Photocathode Sensitivity above 1000 μA/lm@2856K, high sensitivity in near infrared band.

Spectral range from 380nm to 1100nm, the spectral sensitivity band is extended more in near infrared.

Smallest halo(within 0.7mm),  lighter, lower power consumption.

Spectral Range From 380nm-1100nm.

Auto-gating.



Learn more: https://www.usmartsensor.com/portfolio/items/image-intensifier-tube-gen2-1900-fom-18mm


Email: sales@usmartsensor.com
